PRODUCT DETAILS

Description

STAMP Cat-Mis a compact global version ofCatM&NB-IoTdual mode wireless communication module based on SIM7080G solution. The module adopts serial communication,Control Via AT Commands, and supportsmultiple communication protocols. It is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. This module is well suited for remote control, remote monitoring, remote medical and other IoT applications.

Product Features

  • SIM7080G/UARTinterface,AT Commands

  • Support bothCat-MandNB-IoT

  • Globally support the most Cat-M & NB-IoT bands networks

  • Uplink and downlink speed:
    • Cat-M: Uplink:1119KbpsDownlink:589Kbps

    • NB-IoT: Uplink:150KbpsDownlink:136Kbps

  • Supported protocols:
    • TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT communication protocols

  • On-board IPEX external antenna interface, can be transferred to SMA antenna via conversion cable

  • Sim Card specification: MicroSIM

  • Multiple soldering options
    • Three types soldering options are available (SMT, DIP, Jumper wire),

    • With high-temperature resistant plastic enclosure, Peak temperature = 230℃

  • Module certification:
    • Softbank/Telec/RoHS/REACH/JATE/Docomo/KDDI/RCM/CE(RED)/GCF

    • Deutsche Telekom/FCC/PTCRB/AT&T/Verizon/T-Mobile/US Cellular/IC

  • Development Platform:
    • Arduino

  • Antenna Certification Information
    • Telec

Included

  • 1x STAMP Cat-M

  • 1x Antenna 2dBi@ 800-1900MHz SMA glue stick 4G antenna ((with Frequency Sticker)

  • 1x Antenna SMA to IPEX conversion cable AH-15CM-IPEX 10CM

  • 1x HEX Key 1.5mm

Applications

  • Remote Control / Data Acquisition

  • Data on the cloud applications

Specifications


Specification

Parameters

Module type

SIM7080G

Support CAT-M band

B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26 /B27/B28/B66/B85

Support CAT-NB band

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28 /B66/B71/B85

Cat-M upstream and downstream speed

Uplink: 1119Kbps Downlink:589Kbps

NB-IoT upstream and downstream speed

Uplink: 150Kbps Downlink:136Kbps

RF Power Class

Class 5 (Typ. 21dbm)

SIM Card Slot Specifications

MicroSIM

Standby Operating Current

DC5V/46mA

Network current

DC5V/71mA

Communication Interface

UART: baud 115200 8N1

Net Weight

4.5g

Gross Weight

17.8g

Product Size

30.1*20.1*\5.5mm

Package Size

91.1*135.5mm

LEARN AND DOCUMENTS

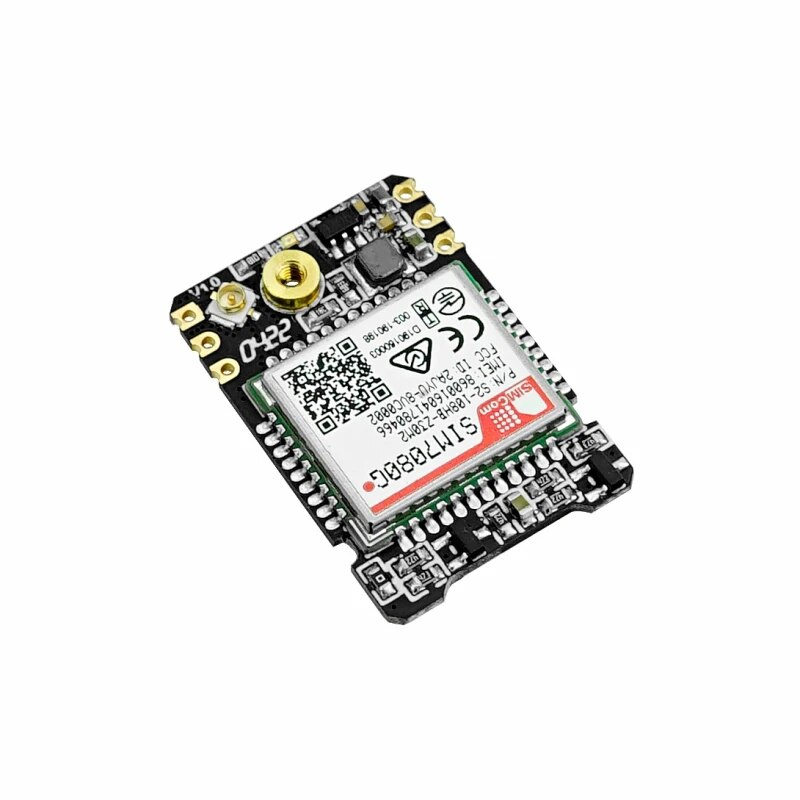

Official M5Stamp CAT-M Module (SIM7080G)

SKU: 8b7bf346-eb47-455f-aa31-d2735c1de149
₪43.97Price
